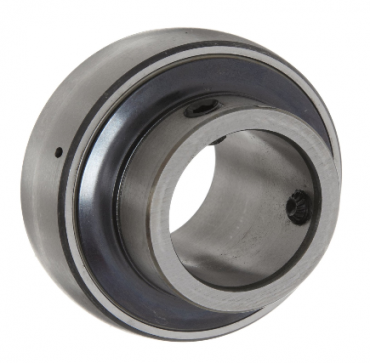

YSA 205-2FK SKF 3/4inch Bearing Insert with Tapered Bore on an Adapter Sleeve
Weight (Kg) :0.00
| YSA 205-2FK SKF 3/4inch Bearing Insert with Tapered Bore on an Adapter Sleeve Y-bearings in the YSA 2-2FK series have a symmetrically extended inner ring on both sides and a tapered bore (taper 1:12) enabling them to be mounted on a standard adapter sleeve in the H 23 series. The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Y-bearings with a tapered bore are equipped with the rugged standard integral seal, fitted with additional plain sheet steel flingers. The outer ring has two lubrication holes as standard. Mounting onto an adapter sleeve enables the bearings to operate at higher speeds and run more smoothly in applications where the direction of rotation is constant or alternating. |
| Attribute | Value |
|---|---|
| Outer Race Width (C) | 0.59inch (15mm) |
| Inner Race Width (B) | 1.38inch (35mm) |
| Outside Dia (D) | 2.0472inch (52mm) |
| Bore Size (d) | 3/4inch (19.05mm) |
| Limiting Speed | 7000r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
