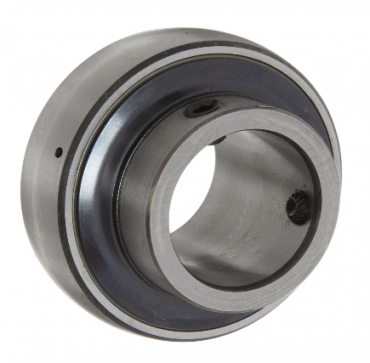

YET 209-112 SKF 1.3/4inch Bearing Insert with Eccentric Locking Collar
Weight (Kg) :0.00
| YET 209-112 SKF 1.3/4inch Bearing Insert with Eccentric Locking Collar Y-bearings with an eccentric locking collar are intended primarily for use in applications where the direction of rotation is constant. On one side of the bearing inner ring is an eccentric extension that fits the locking collar. Turning the locking collar on the inner ring extension in the direction of rotation locks the collar and bearing on the shaft. |
| Attribute | Value |
|---|---|
| Outer Race Width (C) | 0.87inch (22mm) |
| Inner Race Width (B) | 1.72inch (43.7mm) |
| Outside Dia (D) | 3.3465inch (85mm) |
| Bore Size (d) | 1.3/4inch (44.45mm) |
| Limiting Speed | 4300r/min |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
