TMFT36 SKF Bearing Fitting Tool Kit

Weight (Kg) :0.00

TMFT36 SKF Bearing Fitting Tool Kit

Designed for quick and precise mounting of bearings. The right combination of impact ring and sleeve allows effective transmission of mounting force to the bearing with the interference fit, minimising the risk of damaging the bearings raceways or rolling elements. Also suitable for mounting other components sich as bushings, seals and pulleys.

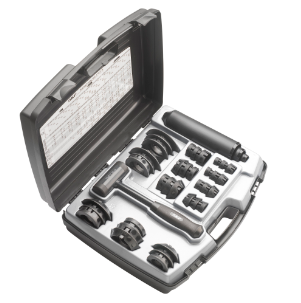

Contains:

  • 36 impact rings
  • 3 impact sleeves
  • Dead blow hammper
  • All packed in a lightweight carrying case

    More Information:

  • Vast range of impact rings facilitate mounting of more than 400 different bearings
  • Facilitates correct mounting on shaft, housing and blind applications
  • The diameter of the impact ring precisely fits the inner and outer diameter of the bearing
  • Small diameter of the impact area on top of the sleeve allows effective transmission and distribution of mounting force
  • Impact rings and sleeves are made of high-impact resistant material for longevity
  • Click connection between impact ring and sleeve provides stability and durability
  • The impact rings are suitable for use under a press
  • Impact rings are marked for clear visual identification of the rings size and easy selection
  • Even surface of the impact sleeves body provides excellent grip
  • The nylon double-side head of the dead-blow hammer helps to prevent damaging the components
  • The rubber handgrip of hammer provides excellent hand grip

    Technical Data:

  • Impact rings:
    - Bore dia: 10-55mm
    - Outer dia: 26-120mm
  • Sleeves - Maximum shaft dia
    - Sleeve A: 220mm
    - Sleeve B: 220mm
    - Sleeve C 225mm
  • Hammer weight: 0.9kg
  • Case dimensions: 525x420x130mm
  • Total Weight: 4kg

    • Attribute Value
    Type Fitting Tools
    Qty

    £388.12
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
