TMBH1 SKF Lightweight Induction Heater
Weight (Kg) :0.00

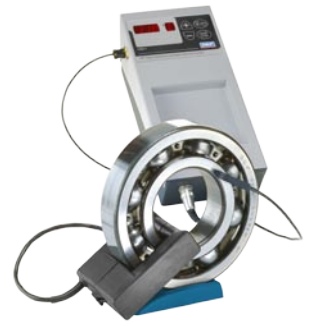

| TMBH1 Lightweight Induction Heater The SKF bearing heater TMBH 1 is a portable lightweight heater for heating bearings with an inner diameter ranging from 20 to 100 mm (0.8 to 4 in) and a maximum corresponding weight of 4.5 kg (10 lb.). The heater uses a patented method of heating based on high frequency induction, which provides optimised efficiency. This method is very quiet and creates no magnetisation at all. In addition to bearings, the heater can also be used for heating ferrous components such as gears, pulleys, bushings and shrink rings. |
| Attribute | Value |
|---|---|
| Temperature Control (C) | 0-200 |
| Time Control (minutes) | 0-60 |
| Max. Temperature (C) | 200 |
| Operating Area (mm) | 52x52 |
| Bore Dia Range (mm) | 20-100 |
| Max. Workpiece Weight (kg) | 5kg |
| Type | Induction |
| Brand | SKF |
| Max. Power Consumption | 350 Watt |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
