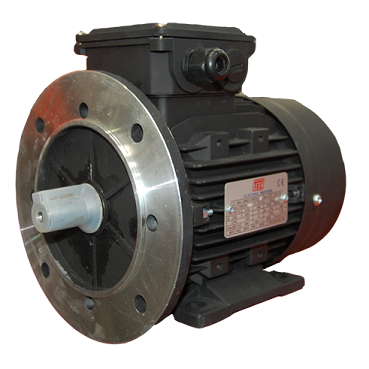

TEC Electric Motor 4HP Flange Mount 1500rpm

Weight (Kg) :0.00

TEC Electric Motor 4HP Flange Mount 1500rpm

Our capacitor start/capacitor run single phase electric motors are suitable for industrial equipment, as well as domestic applications with a single phase 220/240V supply. They are able to cope with applications that are too demanding for other types of single phase motors.

These motors are suitable for use in agricultural industry and can be used in high pressure washers, conveyers, vacuum pumps, as well as refrigeration equipment which demand higher starting torque.

The main advantages of these single phase motors:
  • High starting torque performance
  • Multi-mount lightweight aluminum frame
  • Cool running to comparable kW powers
  • Clockwise and anti-clockwise with change of connection

    Key points:
  • 4 pole
  • Cap Start, Cap Run (dual capacitor) electric motor
  • Insulation Class: F
  • Type: IP55

    N.B. it is highly recommended that single phase motors are not stop/started more than 15 times within a 1 hour period. This is to allow for the safe discharge of capacitors.

    • TEC Electric Motor 4HP Flange Mount 1500rpm

    Technical Data

    Attribute Value
    Frame Size 100L
    Pole 4
    Brand TEC
    Shaft Size 28
    Mounting B5 Flange
    Speed 1500rpm
    HP 4.0
    KW 3.0
