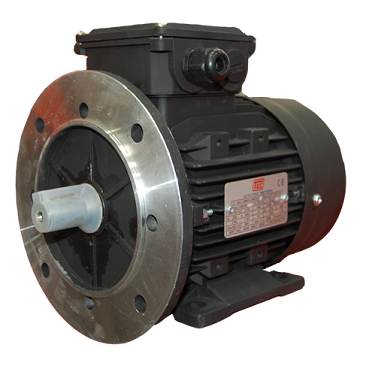

TEC Electric Motor 0.50HP Flange Mount 1500rpm

Weight (Kg) :0.00

TEC Electric Motor 0.50HP Flange Mount 1500rpm

Single phase AC permanent capacitor IEC standard electric motors are suitable for industrial equipment and domestic applications with a single phase 220/240V supply. Bear in mind that they should never be used in hard to start applications e.g. woodworking machinery, vacuumed pumps, air compressors and high pressure water pumps; instead, it is best that you use capacitor start/capacitor run single phase motors.

However, these permanent capacitor motors are ideal for fans, blowers (with low starting torque needs), and intermittent cycling uses e.g. adjusting mechanisms, gate operators and garage door openers, many of which need instant reversing.

The main advantages of these single phase motors:
  • No mechanical starting mechanism
  • Rotatable top mounted aluminum terminal box (capacitor enclosed)
  • Low starting currents
  • Easily switches between clockwise and counter-clockwise operation and speed is variable
  • It is suited for wet and dusty environments

    Key points:
  • 4 pole
  • Insulation class: F
  • Type: IP55
  • Temperature rise: Class B (105°C)
  • Continuous Duty S1
  • Cap run - permanent capacitor electric motor
  • TEC Electric Motor 0.50HP Flange Mount 1500rpm

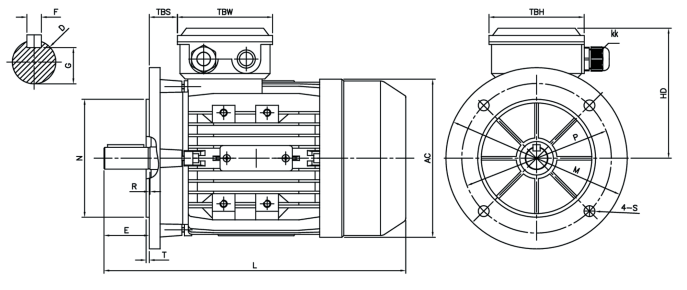

    Technical Data

    Attribute Value
    Pole 4
    Brand TEC
    Frame Size 71
    Mounting B5 Flange
    Speed 1500rpm
    HP 0.50
    Shaft Size 14
    KW 0.37
    Qty

    £114.95

    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
