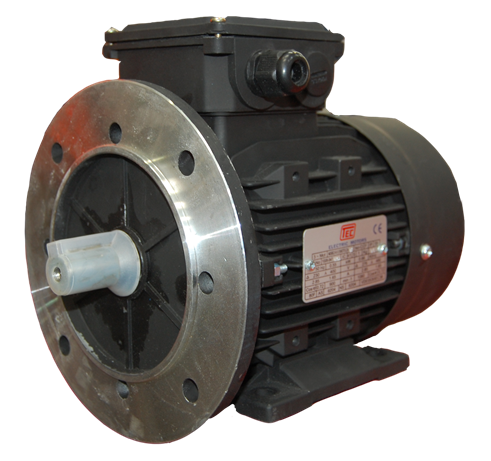

TEC Electric Motor 0.18Kw 4 Pole B5 Flange Mounted
Weight (Kg) :0.00
| TEC Electric Motor 0.18Kw 4 Pole B5 Flange Mounted These aluminium frame 3 phase electric motors, complete with B5 flange mounting, suit a wide range of industrial and commercial applications. They adhere to the latest European mechanical and electrical standards and are rugged and reliable. They are of a high quality, suit wet and dusty environments, have a lightweight aluminium construction and are efficiency IE1/IE2 rated. They are used in applications such as air conditioners, packing equipment, fans, hydraulics, agricultural and so on. If you use these motors you can improve efficiency and save space as these motors are more compact and run smoother than their single phase counterparts, in addition to providing nearly twice the power. As they have water and dust tight cooling fans, the operating conditions can be preserved inside the unit in most working environments. Key points: |
| Attribute | Value |
|---|---|
| Overall Motor Length (L) | 220 |
| Shaft Length (E) | 23 |
| Bolt Hole Centre (M) | 115 |
| Frame Size | 63M |
| Pole | 4 |
| Shaft Dia (D) | 11 |
| Flange Dia (P) | 140 |
| Speed - RPM | 1350 |
| Power - KW | 0.18 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
