T10-690-25 Timing Belt

Weight (Kg) :0.00

T10-690-25 Timing Belt

The Medway metric timing belt (synchronous) is produced from a tough and flexible polyurethane compound that provides a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. It has a wide range of applications from typewriters to heavy industrial machinery

Construction and Features
  • The steel tensile member provides high strength to transmit tensile forces and withstand shock loads with virtually no stretch.
  • Linear speeds of up to 75m/sec can be achieved.
  • The meshing of the teeth prevents belt slip and speed variations, thus ensuring perfect synchronisation and positive
    drive.

    Standards
  • Conforms to 1S013050, they meet 1501813 for static conductivity and have an operating temperature range of -25°C - +100°C.

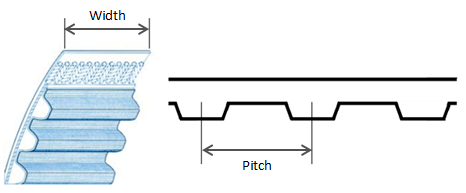

    T10 section polyurethane timing belt.

    • T10-690-25 Timing Belt

    Attribute Value
    Width 25
    Number of Teeth 69
    Length 690
    Brand Medway
    Qty

    £27.17
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
