SYJ45KF SKF 40mm Bore Plummer Block with Adapter Sleeve

Weight (Kg) :0.00

SYJ45KF 40mm Bore Y-bearing Plummer Block - Cast Housing with Adapter Sleeve

Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    The SY series has two oblong holes for the attachment bolts in the base of the housing.

    • SYJ45KF SKF 40mm Bore Plummer Block with Adapter Sleeve

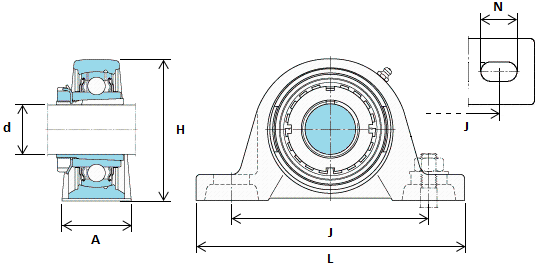

    Attribute Value
    Shaft Centre Height (H1) 54
    Overall Height (H) 107.5
    Housing Width (A) 52
    Housing Length (L) 190
    Bolt Hole Centres (J) 143.5
    Bore Size (d) 40
    Limiting Speed 4300r/min
    Bolt Hole Dia (N) 23.5
    Qty

    £67.61
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
