Product facts, help and info

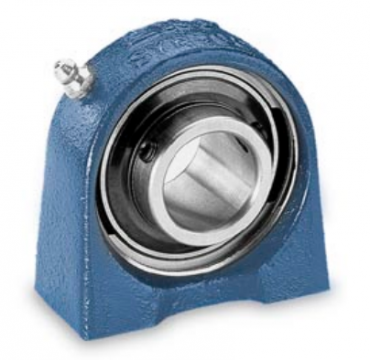

SYF20TF SKF 20mm Bore Shortened Plummer Block with Grub Screws

Weight (Kg) :0.00

SYF20TF 20mm Bore Y-bearing Plummer Block - Shortened Cast Housing & Grub Screws

Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    The SY series has two oblong holes for the attachment bolts in the base of the housing.

    • Attribute Value
    Shaft Centre Height (H1) 33.3
    Limiting Speed 8500r/min
    Overall Height (H) 65
    Housing Width (A) 32
    Housing Length (L) 65
    Bolt Hole Centres (J) 50.8
    Bore Size (d) 20
    Qty

    £34.27
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
