SY45TR SKF 45mm Bore Plummer Block with Grub Screws
Weight (Kg) :0.00
| SY45TR 45mm Bore Y-bearing Plummer Block - Cast Housing & Grub Screws Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions: The SY series has two oblong holes for the attachment bolts in the base of the housing. |

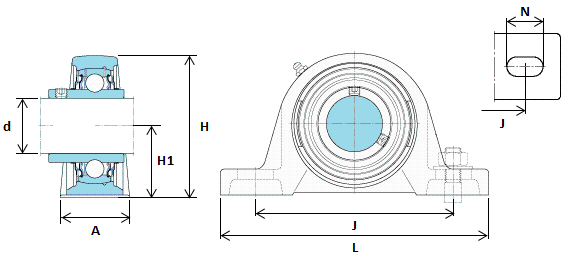

| Attribute | Value |
|---|---|
| Bolt Hole Dia (N) | 22.5 |
| Shaft Centre Height (H1) | 54 |
| Limiting Speed | 2400r/min |
| Overall Height (H) | 107.5 |
| Housing Width (A) | 48 |
| Housing Length (L) | 187 |
| Bolt Hole Centres (J) | 143.5 |
| Bore Size (d) | 45 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
