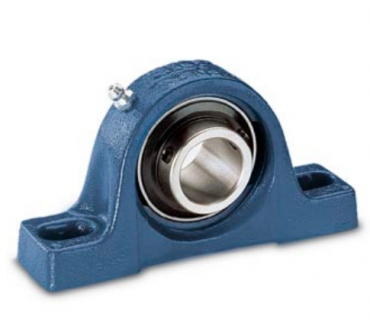

SY3.TF SKF 3inch Bore Plummer Block with Grub Screws
Weight (Kg) :0.00
| SY3TF 3inch Bore Y-bearing Plummer Block - Cast Housing & Grub Screws Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions: The SY series has two oblong holes for the attachment bolts in the base of the housing. |

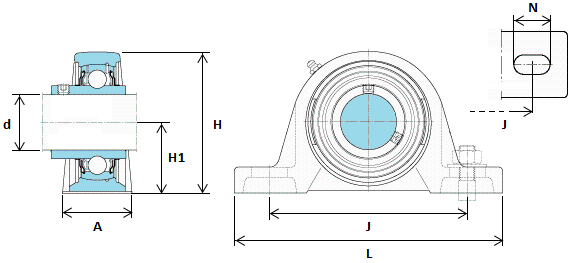

| Attribute | Value |
|---|---|
| Shaft Centre Height (H1) | 3.50inch (88.9mm) |
| Overall Height (H) | 6.97inch (177mm) |
| Housing Width (A) | 3.07inch (78mm) |
| Housing Length (L) | 12inch (305mm) |
| Bolt Hole Centres (J) | 9.00inch (228.6mm) |
| Bore Size (d) | 3inch (76.2mm) |
| Limiting Speed | 2400r/min |
| Bolt Hole Dia (N) | 1.38inch (35mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
