SY1.TF SKF 1inch Bore Plummer Block with Grub Screws
Weight (Kg) :0.00
| SY1.TF SKF 1inch Bore Y-bearing Plummer Block - Cast Housing & Grub Screws Y-bearing plummer block units with grey cast iron housing can be relubricated through a grease fitting in the housing. This makes them especically suitable for bearing arrangements that operate under any of the following conditions: The SY series has two oblong holes for the attachment bolts in the base of the housing. |

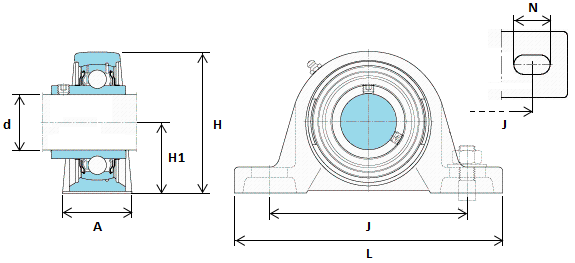

| Attribute | Value |
|---|---|
| Overall Height (H) | 2.78inch (70.5mm) |
| Housing Width (A) | 1.42inch (36mm) |
| Housing Length (L) | 5.12inch (130mm) |
| Bolt Hole Centres (J) | 4.02inch (102mm) |
| Bore Size (d) | 1inch (25.4mm) |
| Shaft Centre Height (H1) | 1.44inch (36.5mm) |
| Limiting Speed | 7000r/min |
| Bolt Hole Dia (N) | 0.77inch (19.5mm) |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
