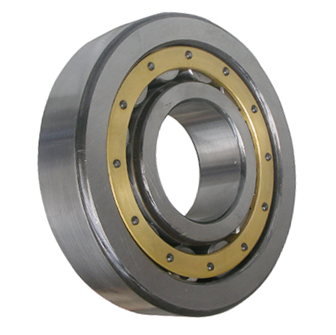

NUP318 ECJ SKF Cylindrical Roller Bearing
Weight (Kg) :0.00
| NUP318 ECJ SKF Cylindrical Roller Bearing SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings. The outer ring of the NUP design bearing has two integral flanges and the inner ring has one integral flange and one non-integral flange in the form of a loose flange ring. These bearings can be used as locating bearings to locate the shaft axially in both directions. |
| Attribute | Value |
|---|---|
| Limiting Speed | 4500rpm |
| Dynamic load | 365kN |
| Brand | SKF |
| Clearance | Standard |

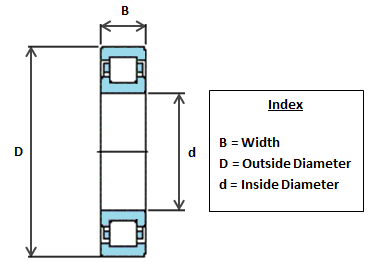

| Width | 43 |
| Outside Dia | 190 |
| Inside Dia | 90 |
| Static Load | 360kN |
| Ref Speed | 3800rpm |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
