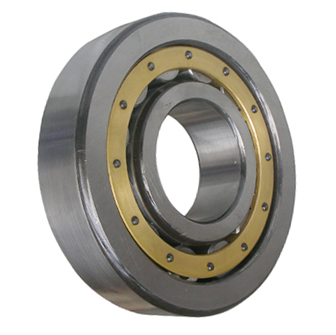

NU411 SKF Cylindrical Roller Bearing

Weight (Kg) :0.00

NU411 SKF Cylindrical Roller Bearing

SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.

The outer ring of the NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomadated in both directions.

  • Optimised internal design incorporating more and/or larger rollers and with modified roller end/flange end
  • Injection moulded cage of glass fibre reinforced polyamide 6.6, roller centred

    • NU411 SKF Cylindrical Roller Bearing

    Attribute Value
    Static Load 140kN
    Dynamic load 142kN
    Brand SKF
    Clearance Standard

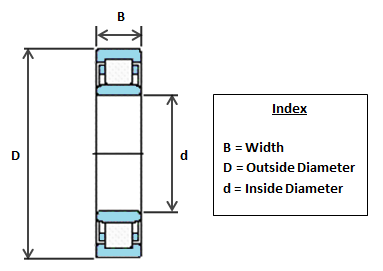

    Width 33
    Outside Dia 140
    Inside Dia 55
    Limiting Speed 6300rpm
    Ref Speed 5600rpm
    Qty

    £258.34
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
