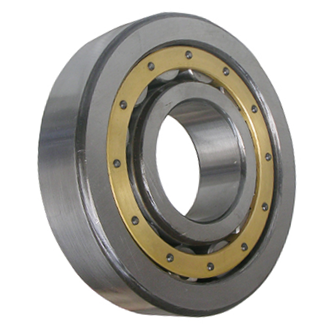

NU328 ECM SKF Cylindrical Roller Bearing

Weight (Kg) :0.00

NU328 ECM SKF Cylindrical Roller Bearing

SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.

The outer ring of the NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomadated in both directions.

  • Optimised internal design incorporating more and/or larger rollers and with modified roller end/flange end
  • Two-piece machined brass cage, roller centred

    • NU328 ECM SKF Cylindrical Roller Bearing

    Attribute Value
    Static Load 830kN
    Limiting Speed 2800rpm
    Dynamic load 780kN
    Brand SKF
    Clearance Standard
    Width 62
    Outside Dia 300
    Inside Dia 140
    Ref Speed 2400rpm
    Qty

    £1601.81
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
