NKIB5901 INA Needle Roller / Angular Contact Bearing
Weight (Kg) :0.00
| NKIB5901 INA Needle Roller / Angular Contact Bearing NKIB bearings comprise of needle/ball race with double directional axial component. It can be lubricated with grease or oil. For lubrication, the outer ring has a lubrication groove and lubrication hole. They are suitable for operating temperatures from –20°C to +120°C. It has one narrow inner ring and one wide inner ring. The axial bearing component has a plastic ball cage. At the point where the inner rings join, there is a shoulder on both sides for guidance of the ball and cage assembly. As a result, these bearings are also suitable for supporting axial forces alternating in direction. |

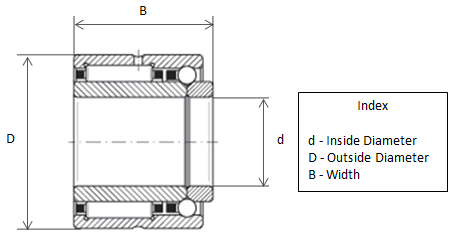

| Attribute | Value |
|---|---|
| Width (B) | 17.5 |
| Outside Dia (D) | 24 |
| Inside Dia (d) | 12 |
| Brand | INA |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
