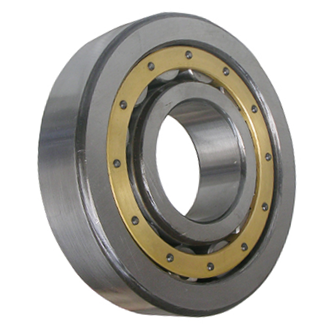

NJ2220 ECP SKF Cylindrical Roller Bearing

Weight (Kg) :0.00

NJ2220 ECP SKF Cylindrical Roller Bearing

SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.

The outer ring of the NJ design bearing has two integral flanges and the inner ring has one integral flange. These bearings can locate the shaft axially in one direction.

  • Optimised internal design incorporating more and/or larger rollers and with modified roller end/flange end
  • Injection moulded cage of glass fibre reinforced polyamide 6.6, roller centred

    • NJ2220 ECP SKF Cylindrical Roller Bearing

    Attribute Value
    Dynamic load 380kN
    Limiting Speed 4500rpm
    Brand SKF
    Clearance Standard

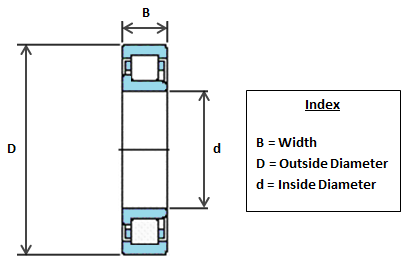

    Width 46
    Outside Dia 180
    Inside Dia 100
    Static Load 450kN
    Ref Speed 4000rpm
    Qty

    £326.54
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
