MSP19-A Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

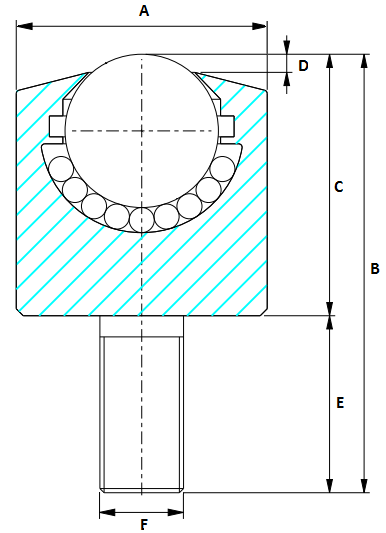

| MSP19-A Carbon Steel Housing with Stainless Steel Ball. Medium duty ball transfer unit, bolt fitting. Stainless steel ball (AISI 420) but other materials as standard. As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 30mm B= 46.5mm C= 26mm D= 4.8mm E= 20.5mm F= M8 |
| Attribute | Value |
|---|---|
| Overall Length (mm) | 46.5 |
| Overall Dia (mm) | 30 |
| Ball Dia (mm) | 19 |
| Max Load (kg) | 75 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
