MSP14-SS Stainless Steel Ball Transfer Unit
Weight (Kg) :0.00

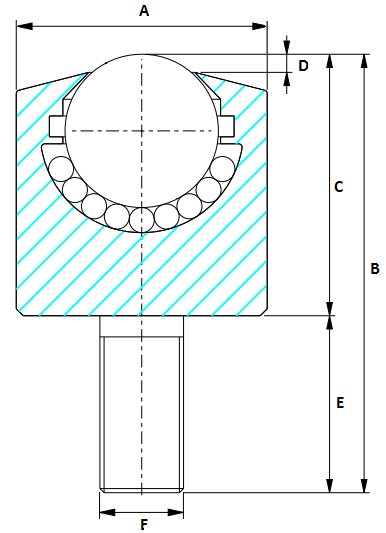

| MSP14-SS Stainless Steel Ball Transfer Unit Medium duty ball transfer unit, bolt fitting. All parts are in stainless steel – outer housing AISI 416 and ball AISI 420. As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 24mm B= 32.5mm C= 20.5mm D= 3.9mm E= 12mm F= M6 |
| Attribute | Value |
|---|---|
| Overall Length (mm) | 32.5 |
| Overall Dia (mm) | 24 |
| Ball Dia (mm) | 15 |
| Max Load (kg) | 50 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
