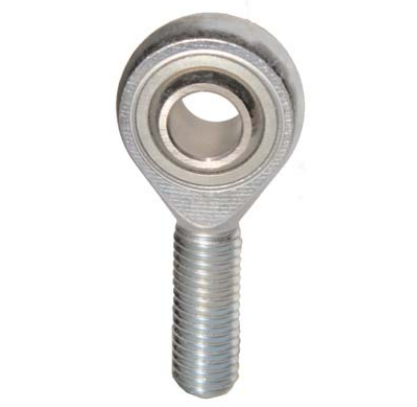

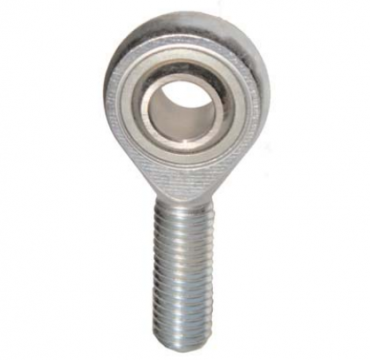

MSL-M05 5mm Left Hand Rod End Bearing

Weight (Kg) :0.00

MSL-M05 5mm Left Hand Rod End Bearing

MS - Series is our 3 piece steel on steel range of general purpose male rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction.

Materials
  • Housing: Forged steel 080M46 Zinc plated white & blue passivate (silver/clear)
  • Inner ring: Steel 080M46
  • Liner: PTFE fabric
  • Ball: Bearing Steel lOOCr6, case hardened & electro-less Nickel plated
  • Stud: Steel 230M07PB Zinc plated white & blue passivate (silver/clear)

    Specification
  • ELV & R0HS compliant

    Temperature Range
  • -53°C to +121°C

    • MSL-M05 5mm Left Hand Rod End Bearing

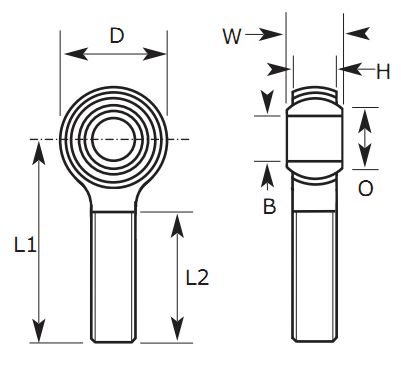

    Attribute Value
    Housing Dia (D) 18
    Ball Width (W) 8
    Thread Direction Left
    Length of Thread (L2) 19
    Shaft Centre Height (L1) 33
    Thread M5x0.80
    Bore Size 5
    Housing Depth (H) 6
    Qty

    £11.71
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
