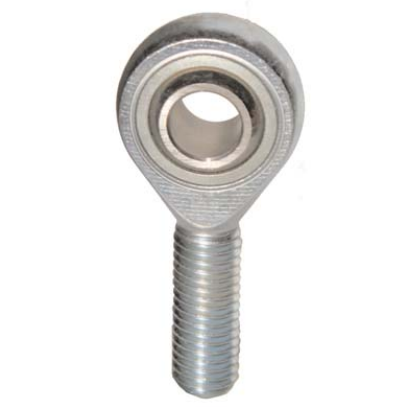

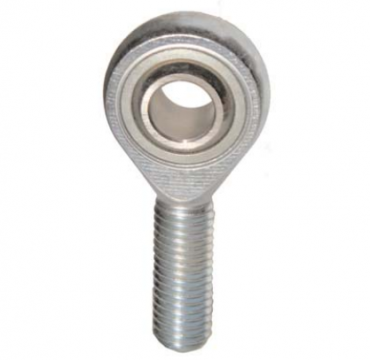

MSL-12SS 3/4inch Left Hand Rod End Bearing (Stainless Steel)

Weight (Kg) :0.00

MSL-12SS 3/4inch Left Hand Rod End Bearing (Stainless Steel)

MS - Series is our 3 piece steel on steel range of general purpose male rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction.

Materials
  • Housing: Forged steel 080M46 Zinc plated white & blue passivate (silver/clear)
  • Inner ring: Steel 080M46
  • Liner: PTFE fabric
  • Ball: Bearing Steel lOOCr6, case hardened & electro-less Nickel plated
  • Stud: Steel 230M07PB Zinc plated white & blue passivate (silver/clear)

    Specification
  • ELV & R0HS compliant

    Temperature Range
  • -53°C to +121°C

    • MSL-12SS 3/4inch Left Hand Rod End Bearing (Stainless Steel)

    Attribute Value
    Ball Width (W) 0.875
    Housing Dia (D) 1.750
    Thread Direction Left
    Length of Thread (L2) 1.750
    Shaft Centre Height (L1) 2.875
    Thread 3/4 UNF
    Bore Size 3/4
    Housing Depth (H) 0.687
    Qty

    £99.96
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
