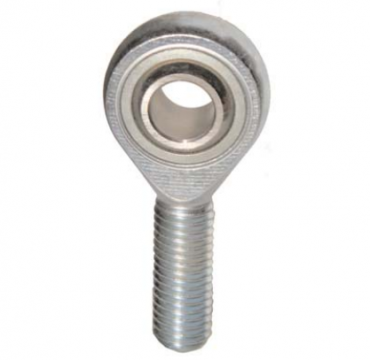

MS-M18C 18mm Right Hand Rod End Bearing

Weight (Kg) :0.00

MS-M18C 18mm Right Hand Rod End Bearing

MS - Series is our 3 piece steel on steel range of general purpose male rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction.

Materials
  • Housing: Forged steel 080M46 Zinc plated white & blue passivate (silver/clear)
  • Inner ring: Steel 080M46
  • Liner: PTFE fabric
  • Ball: Bearing Steel lOOCr6, case hardened & electro-less Nickel plated
  • Stud: Steel 230M07PB Zinc plated white & blue passivate (silver/clear)

    Specification
  • ELV & R0HS compliant

    Temperature Range
  • -53°C to +121°C

    • Attribute Value
    Housing Dia (D) 44
    Thread Direction Right
    Length of Thread (L2) 41
    Shaft Centre Height (L1) 72
    Thread M18x1.50
    Bore Size 18
    Ball Width (W) 23
    Housing Depth (H) 16.5
    Qty

    £37.83
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
