MS-08SS 1/2inch Right Hand Rod End Bearing (Stainless Steel)

Weight (Kg) :0.00

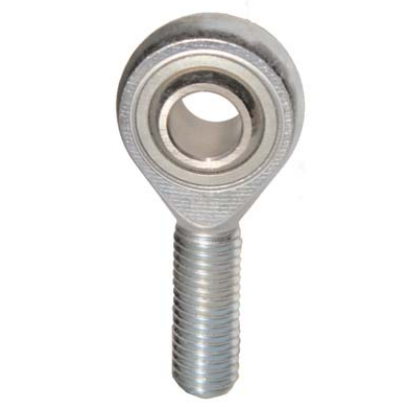

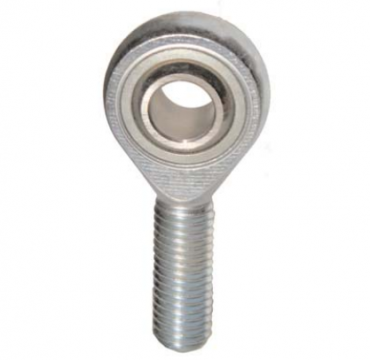

MS-08SS 1/2inch Right Hand Rod End Bearing (Stainless Steel)

MS - Series is our 3 piece steel on steel range of general purpose male rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction.

Materials
  • Housing: Forged steel 080M46 Zinc plated white & blue passivate (silver/clear)
  • Inner ring: Steel 080M46
  • Liner: PTFE fabric
  • Ball: Bearing Steel lOOCr6, case hardened & electro-less Nickel plated
  • Stud: Steel 230M07PB Zinc plated white & blue passivate (silver/clear)

    Specification
  • ELV & R0HS compliant

    Temperature Range
  • -53°C to +121°C

    • MS-08SS 1/2inch Right Hand Rod End Bearing (Stainless Steel)

    Attribute Value
    Housing Dia (D) 1.312
    Thread Direction Right
    Length of Thread (L2) 1.500
    Shaft Centre Height (L1) 2.438
    Thread 1/2 UNF
    Bore Size 1/2
    Ball Width (W) 0.625
    Housing Depth (H) 0.500
    Qty

    £57.19
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
