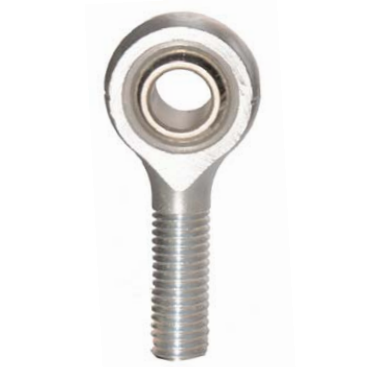

MPL-05 5/16inch Left Hand Rod End Bearing

Weight (Kg) :0.00

MPL-05 5/16inch Left Hand Rod End Bearing

MP - Series is our 3-piece standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Steel 230M07PB, Zinc plated white & blue passivate (silver/clear).
  • Race: GR-Nylon, LV-3H.
  • Ball: Bearing Steel 100Cr6, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 170°C

    • MPL-05 5/16inch Left Hand Rod End Bearing

    Attribute Value
    Ball Width (W) 0.437
    Thread Direction Left Hand
    Length of Thread (L2) 1.250
    Shaft Centre Height (L1) 1.875
    Thread 5/16 UNF
    Bore Size 5/16
    Housing Depth (H) 0.344
    Housing Dia (D) 0.875
    Qty

    £7.44
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
