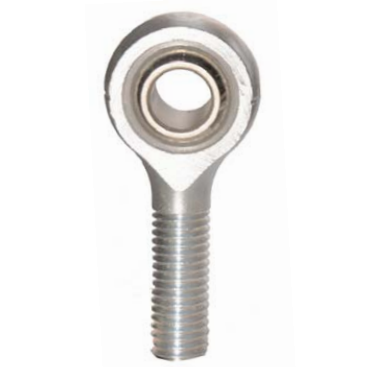

MPL-04 1/4inch Left Hand Rod End Bearing

Weight (Kg) :0.00

MPL-04 1/4inch Left Hand Rod End Bearing

MP - Series is our 3-piece standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Steel 230M07PB, Zinc plated white & blue passivate (silver/clear).
  • Race: GR-Nylon, LV-3H.
  • Ball: Bearing Steel 100Cr6, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 170°C

    • MPL-04 1/4inch Left Hand Rod End Bearing

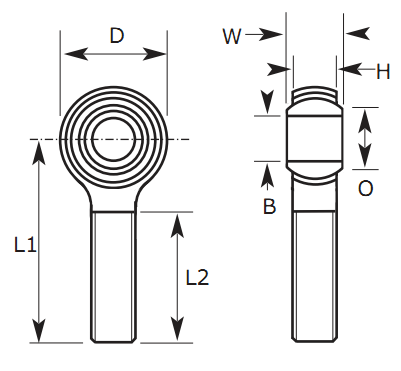

    Attribute Value
    Ball Width (W) 0.375
    Housing Depth (H) 0.281
    Thread Direction Left Hand
    Length of Thread (L2) 1.000
    Shaft Centre Height (L1) 1.562
    Thread 1/4 UNF
    Bore Size 1/4
    Housing Dia (D) 0.750
    Qty

    £7.44
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
