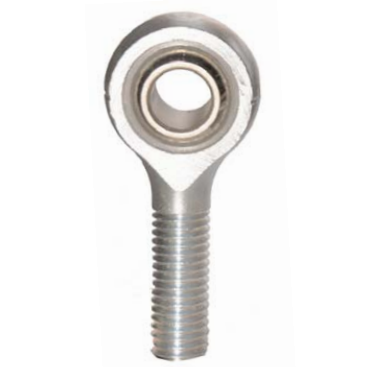

MP-12SS 3/4inch Right Hand Rod End Bearing - Stainless Steel

Weight (Kg) :0.00

MP-12SS 3/4inch Right Hand Rod End Bearing - Stainless Steel

MP - Series is our 3-piece standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Stainless steel, Grade 303L
  • Race: GR-Nylon
  • Ball: Stainless steel, Grade 440C

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 170°C

    • MP-12SS 3/4inch Right Hand Rod End Bearing - Stainless Steel

    Attribute Value
    Housing Depth (H) 0.687
    Housing Dia (D) 1.750
    Ball Width (W) 0.875
    Thread Direction Right Hand
    Length of Thread (L2) 1.750
    Shaft Centre Height (L1) 2.875
    Thread 3/4-16 UNF
    Bore Size 3/4
    Qty

    £97.11
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
