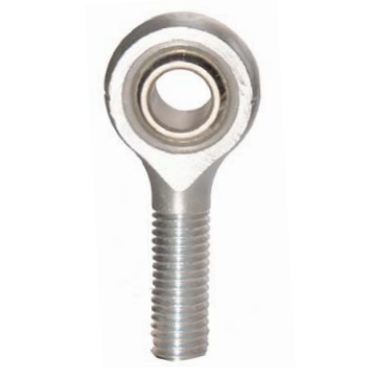

MP-10SS 5/8inch Right Hand Rod End Bearing - Stainless Steel

Weight (Kg) :0.00

MP-10SS 5/8inch Right Hand Rod End Bearing - Stainless Steel

MP - Series is our 3-piece standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Stainless steel, Grade 303L
  • Race: GR-Nylon
  • Ball: Stainless steel, Grade 440C

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 170°C

    • MP-10SS 5/8inch Right Hand Rod End Bearing - Stainless Steel

    Attribute Value
    Housing Dia (D) 1.500
    Ball Width (W) 0.750
    Thread Direction Right Hand
    Length of Thread (L2) 1.625
    Housing Depth (H) 0.562
    Shaft Centre Height (L1) 2.625
    Thread 5/8-18 UNF
    Bore Size 5/8
    Qty

    £54.70
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
