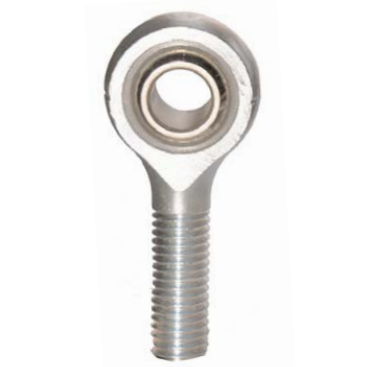

MP-10 5/8inch Right Hand Rod End Bearing

Weight (Kg) :0.00

MP-10 5/8inch Right Hand Rod End Bearing

MP - Series is our 3-piece standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.

Materials
  • Housing: Steel 230M07PB, Zinc plated white & blue passivate (silver/clear).
  • Race: GR-Nylon, LV-3H.
  • Ball: Bearing Steel 100Cr6, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -30°C to + 170°C

    • MP-10 5/8inch Right Hand Rod End Bearing

    Attribute Value
    Housing Dia (D) 1.500
    Ball Width (W) 0.750
    Thread Direction Right Hand
    Length of Thread (L2) 1.625
    Shaft Centre Height (L1) 2.625
    Thread 5/8 UNF
    Bore Size 5/8
    Housing Depth (H) 0.562
    Qty

    £17.42
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
