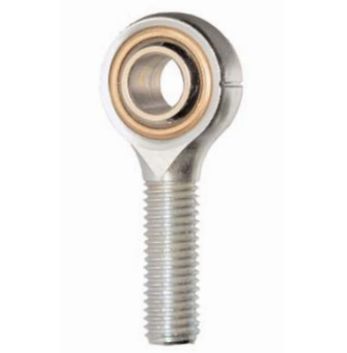

MBL-M12 12mm Left Hand Rod End Bearing

Weight (Kg) :0.00

MBL-M12 12mm Left Hand Rod End Bearing

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -34°C to +149°C

    • MBL-M12 12mm Left Hand Rod End Bearing

    Attribute Value
    Housing Depth (H) 12
    Thread Direction Left Hand
    Length of Thread (L2) 33
    Shaft Centre Height (L1) 54
    Thread M12x1.75
    Bore Size 12
    Ball Width (W) 16
    Housing Dia (D) 30
    Qty

    £12.47
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
