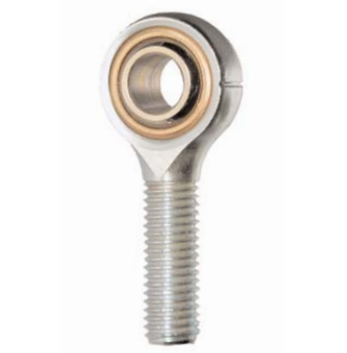

MBL-10 5/8inch Left Hand Rod End Bearing

Weight (Kg) :0.00

MBL-10 5/8inch Left Hand Rod End Bearing

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -34°C to +149°C

    • MBL-10 5/8inch Left Hand Rod End Bearing

    Attribute Value
    Ball Width (W) 0.750
    Housing Depth (H) 0.562
    Thread Direction Left Hand
    Length of Thread (L2) 1.625
    Shaft Centre Height (L1) 2.625
    Thread 5/8-18 UNF
    Bore Size 5/8
    Housing Dia (D) 1.500
    Qty

    £26.88
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
