MBL-08SS 1/2inch Left Hand Rod End Bearing - Stainless Steel

Weight (Kg) :0.00

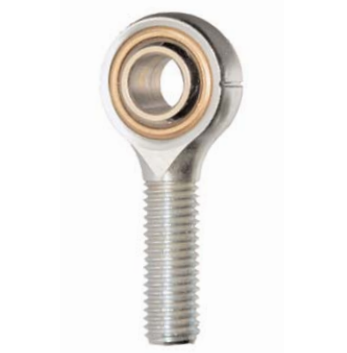

MBL-08SS 1/2inch Left Hand Rod End Bearing - Stainless Steel

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials
  • Housing: Stainless steel, Grade 303L
  • Race: Bronze LB4
  • Ball: Stainless steel, Grade 440C

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -34°C to +149°C

    • MBL-08SS 1/2inch Left Hand Rod End Bearing - Stainless Steel

    Attribute Value
    Ball Width (W) 0.652
    Housing Depth (H) 0.500
    Thread Direction Left Hand
    Length of Thread (L2) 1.500
    Shaft Centre Height (L1) 2.438
    Thread 1/2-20 UNF
    Bore Size 1/2
    Housing Dia (D) 1.312
    Qty

    £68.84
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
