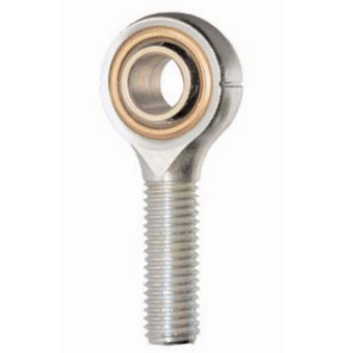

MB-M20CSS 20mm Right Hand Rod End Bearing - Stainless Steel (Fine Thread)

Weight (Kg) :0.00

MB-M20CSS 20mm Right Hand Rod End Bearing - Stainless Steel (Fine Thread)

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials
  • Housing: Stainless steel, Grade 303L
  • Race: Bronze LB4
  • Ball: Stainless steel, Grade 440C

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -34°C to +149°C

    • MB-M20CSS 20mm Right Hand Rod End Bearing - Stainless Steel (Fine Thread)

    Attribute Value
    Housing Depth (H) 18
    Housing Dia (D) 50
    Thread Direction Right Hand
    Length of Thread (L2) 46
    Shaft Centre Height (L1) 78
    Thread M20x1.50
    Bore Size 20
    Ball Width (W) 25
    Qty

    £173.49
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
