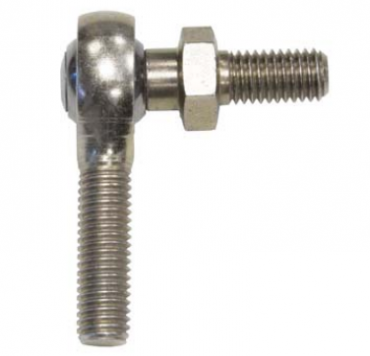

MB-M16S 16mm Right Hand Studded Rod End Bearing

Weight (Kg) :0.00

MB-M16S 16mm Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-M16S 16mm Right Hand Studded Rod End Bearing

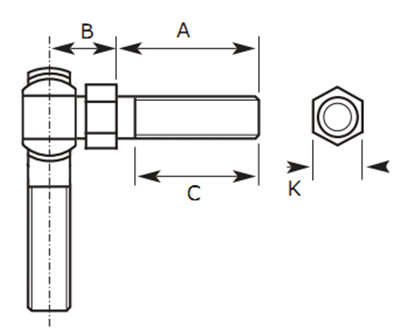

    Attribute Value
    Stud Length (A) 32
    Thread Direction Right Hand
    Thread M16x2.00
    Bore Size 16
    Thread Length (C) 29
    B 32
    K 24
    A+B 64
    Qty

    £28.16
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
