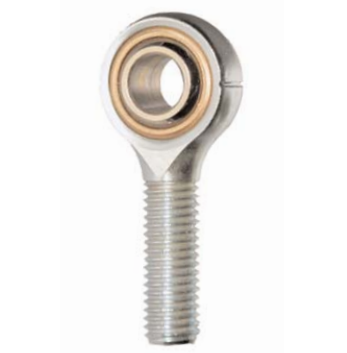

MB-M05 5mm Right Hand Rod End Bearing

Weight (Kg) :0.00

MB-M05 5mm Right Hand Rod End Bearing

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened & electro-less Nickel plated.

    Specification
  • ELV & RoHS Compliant.

    Temperature Range
  • -34°C to +149°C

    • MB-M05 5mm Right Hand Rod End Bearing

    Attribute Value
    Housing Depth (H) 6
    Thread Direction Right Hand
    Length of Thread (L2) 20
    Shaft Centre Height (L1) 33
    Thread M5x0.80
    Bore Size 5
    Ball Width (W) 8
    Housing Dia (D) 16
    Qty

    £8.97
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
