MB-05S 5/16inch Right Hand Studded Rod End Bearing

Weight (Kg) :0.00

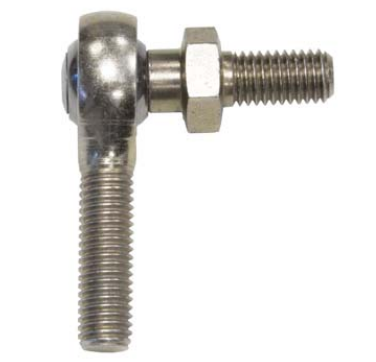

MB-05S 5/16inch Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-05S 5/16inch Right Hand Studded Rod End Bearing

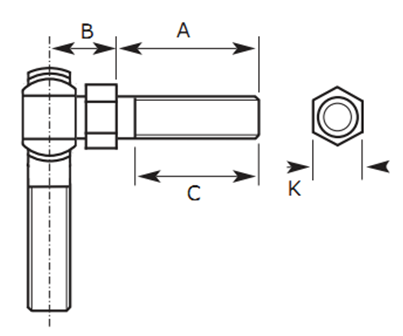

    Attribute Value
    Thread Length (C) 0.594
    Stud Length (A) 0.687
    Thread Direction Right Hand
    Thread 5/16-24 UNF
    Bore Size 5/16
    B 0.547
    K 0.437
    A+B 1.234
    Qty

    £13.26
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
