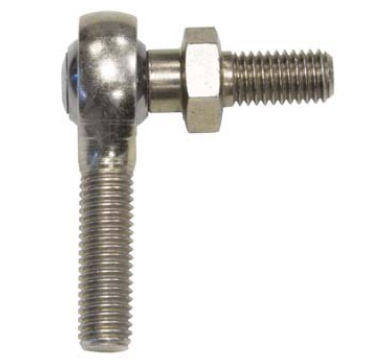

MB-04S 1/4inch Right Hand Studded Rod End Bearing

Weight (Kg) :0.00

MB-04S 1/4inch Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-04S 1/4inch Right Hand Studded Rod End Bearing

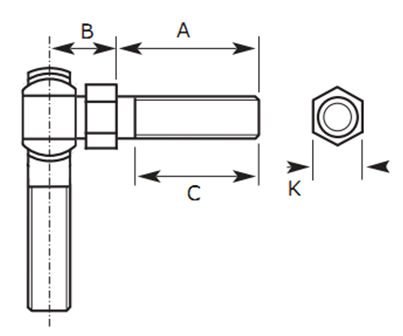

    Attribute Value
    Thread Length (C) 0.500
    Stud Length (A) 0.562
    Thread Direction Right Hand
    Thread 1/4-28 UNF
    Bore Size 1/4
    B 0.485
    K 0.375
    A+B 1.047
    Qty

    £11.86
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
