M60 Chrome Ball Transfer Unit
Weight (Kg) :0.00

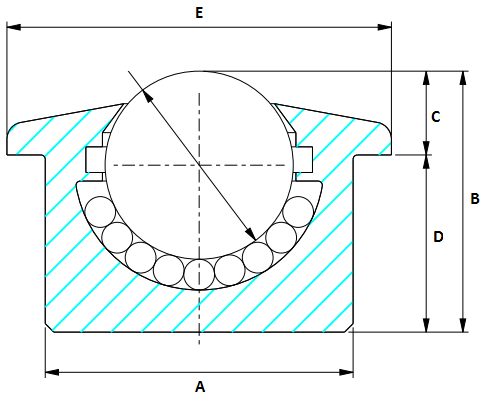

| M60 Chrome Ball Transfer Unit Medium duty, push fit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 100mm B= 78mm C= 30mm D= 48mm E= 117mm |
| Attribute | Value |
|---|---|
| Flange Dia (mm) | 117 |
| Overall Height (mm) | 78 |
| Overall Body Dia (mm) | 100 |
| Ball Dia (mm) | 60 |
| Max Load (kg) | 1500 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
