M45 Chrome Ball Transfer Unit
Weight (Kg) :0.00

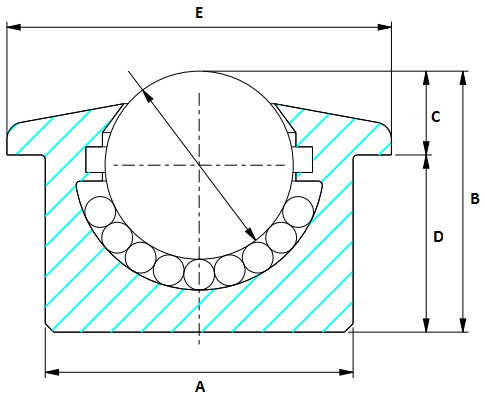

| M45 Chrome Ball Transfer Unit Medium duty, push fit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 62mm B= 53.5mm C= 19mm D= 34.5mm E= 75mm |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 53.5 |
| Overall Body Dia (mm) | 62 |
| Ball Dia (mm) | 45 |
| Max Load (kg) | 600 |
| Flange Dia (mm) | 75 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
