M30 Chrome Ball Transfer Unit
Weight (Kg) :0.00

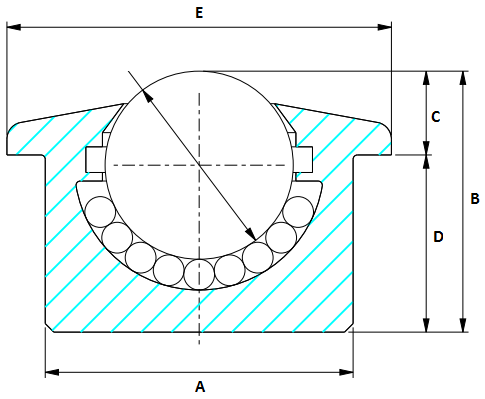

| M30 Chrome Ball Transfer Unit Medium duty, push fit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 45mm B= 36.8mm C= 13.8mm D= 23mm E= 55mm |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 36.8 |
| Overall Body Dia (mm) | 45 |
| Ball Dia (mm) | 30 |
| Max Load (kg) | 350 |
| Flange Dia (mm) | 55 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
