M25 Chrome Ball Transfer Unit
Weight (Kg) :0.00

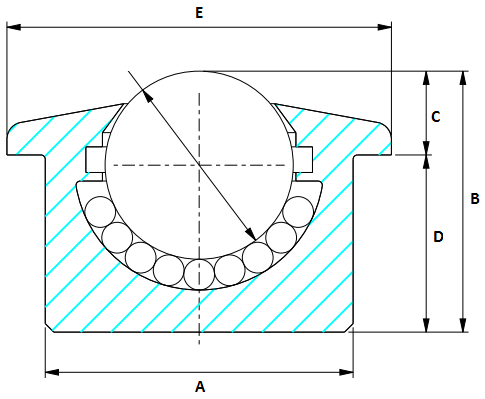

| M25 Chrome Ball Transfer Unit Medium duty, push fit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 38mm B= 30.5mm C= 13mm D= 17.5mm E= 46mm Pressed top cap |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 30.5 |
| Overall Body Dia (mm) | 38 |
| Ball Dia (mm) | 25 |
| Max Load (kg) | 200 |
| Flange Dia (mm) | 46 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
