M12 Chrome Ball Transfer Unit
Weight (Kg) :0.00

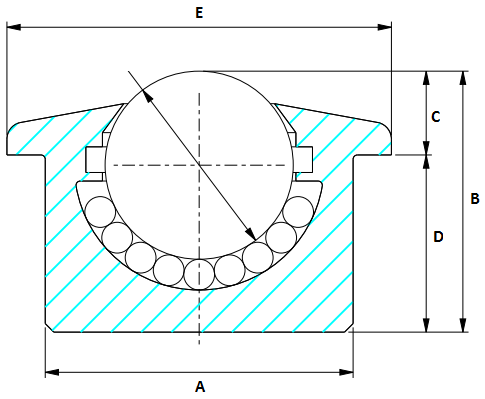

| M12 Chrome Ball Transfer Unit Medium duty, push fit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 22mm B= 16.7mm C= 8mm D= 8.7mm E= 27mm Pressed top cap |
| Attribute | Value |
|---|---|
| Overall Height (mm) | 16.7 |
| Overall Body Dia (mm) | 22 |
| Ball Dia (mm) | 12 |
| Max Load (kg) | 20 |
| Flange Dia (mm) | 27 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
