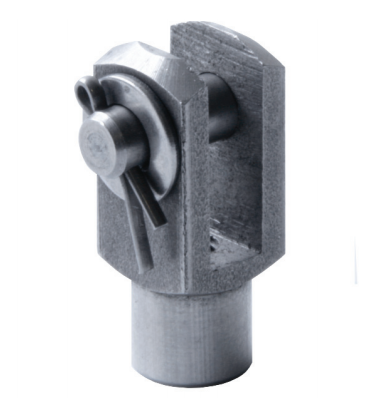

GML8SS-ASSY 8mm Bore Stainless Steel Clevis Joint (Right Hand)

Weight (Kg) :0.00

GML8SS-ASSY 8mm Bore Stainless Steel Clevis Joint (Right Hand)

Clevis: Stainless Steel 303L
Clevis Pin: Stainless Steel 303L
Washer: Stainless Steel 303L
Split Pin: Stainless Steel 303L

Specification: ELV &RoHS compliant

Possible Applications
  • Light to heavy industrial/mechanical applications
  • Construction equipment
  • Agricultural equipment
  • Industrial equipment

    • GML8SS-ASSY 8mm Bore Stainless Steel Clevis Joint (Right Hand)

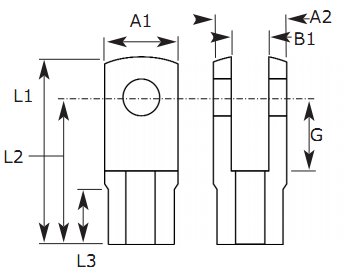

    Attribute Value
    Thread Length (L3) 12
    Height/Length (L1) 58
    Thread Direction Right Hand
    Thread Size M8x1.25
    Bore Size 8
    A1/A2 16
    G 32
    B1 8
    L2 48
    Qty

    £6.50
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
