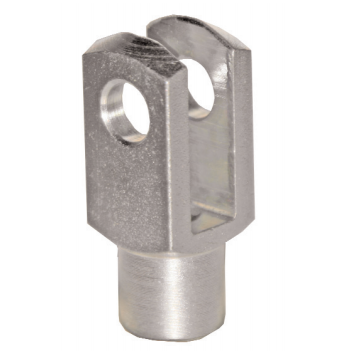

GML5 5mm Bore Steel Clevis Joint (Right Hand)
Weight (Kg) :0.00
| GML5 5mm Bore Steel Clevis Joint (Right Hand) Clevis: Steel 230M07PB Zinc plated white & blue passivate (silver/clear) Specification: ELV &RoHS compliant Possible Applications |

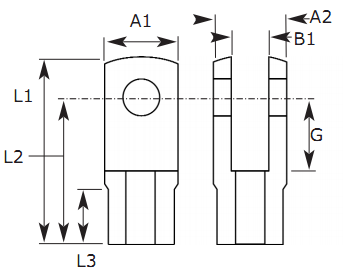

| Attribute | Value |
|---|---|
| G | 20 |
| Thread Length (L3) | 7.5 |
| Height/Length (L1) | 36 |
| Thread Direction | Right Hand |
| A1/A2 | 10 |
| Thread Size | M5x0.80 |
| Bore Size | 5 |
| B1 | 5 |
| L2 | 30 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
