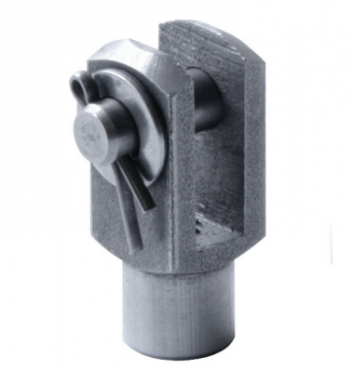

GML14SS-ASSY 14mm Bore Stainless Steel Clevis Joint (Right Hand)

Weight (Kg) :0.00

GML14SS-ASSY 14mm Bore Stainless Steel Clevis Joint (Right Hand)

Clevis: Stainless Steel 303L
Clevis Pin: Stainless Steel 303L
Washer: Stainless Steel 303L
Split Pin: Stainless Steel 303L

Specification: ELV &RoHS compliant

Possible Applications
  • Light to heavy industrial/mechanical applications
  • Construction equipment
  • Agricultural equipment
  • Industrial equipment

    • GML14SS-ASSY 14mm Bore Stainless Steel Clevis Joint (Right Hand)

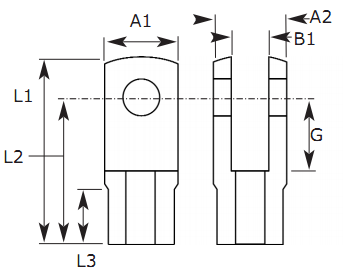

    Attribute Value
    Thread Length (L3) 22.5
    Height/Length (L1) 101
    Thread Direction Right Hand
    Thread Size M14x2.00
    Bore Size 14
    A1/A2 27
    G 56
    B1 14
    L2 86
    Qty

    £42.90
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
