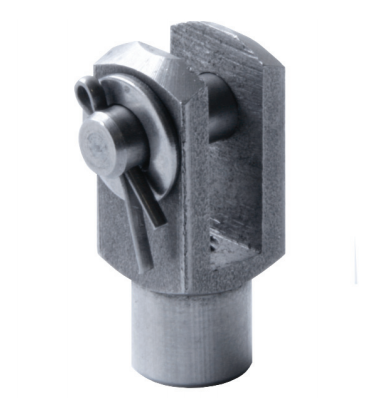

GM6SS-ASSY 6mm Bore Stainless Steel Clevis Joint (Right Hand)
Weight (Kg) :0.00
| GM6SS-ASSY 6mm Bore Stainless Steel Clevis Joint (Right Hand) Clevis: Stainless Steel 303L Clevis Pin: Stainless Steel 303L Washer: Stainless Steel 303L Split Pin: Stainless Steel 303L Specification: ELV &RoHS compliant Possible Applications |

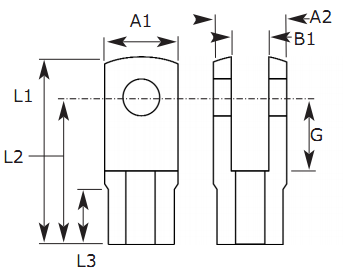

| Attribute | Value |
|---|---|
| B1 | 6 |
| G | 12 |
| A1/A2 | 12 |
| Thread Length (L3) | 9 |
| Thread Direction | Right Hand |
| Height/Length (L1) | 31 |
| Thread Size | M6x1.00 |
| Bore Size | 6 |
| L2 | 24 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
