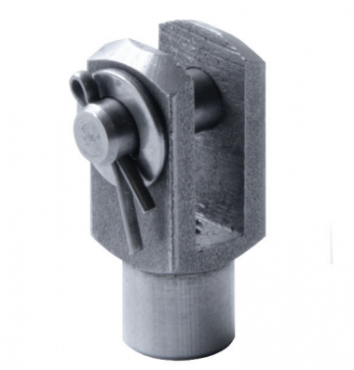

GM16SS-ASSY 16mm Bore Stainless Steel Clevis Joint (Right Hand)

Weight (Kg) :0.00

GM16SS-ASSY 16mm Bore Stainless Steel Clevis Joint (Right Hand)

Clevis: Stainless Steel 303L
Clevis Pin: Stainless Steel 303L
Washer: Stainless Steel 303L
Split Pin: Stainless Steel 303L

Specification: ELV &RoHS compliant

Possible Applications
  • Light to heavy industrial/mechanical applications
  • Construction equipment
  • Agricultural equipment
  • Industrial equipment

    • GM16SS-ASSY 16mm Bore Stainless Steel Clevis Joint (Right Hand)

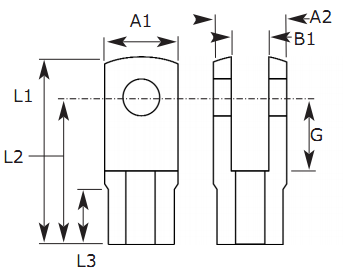

    Attribute Value
    Thread Length (L3) 24
    Height/Length (L1) 83
    Thread Direction Right Hand
    Thread Size M16x2.00
    Bore Size 16
    A1/A2 32
    G 32
    B1 16
    L2 64
    Qty

    £49.40
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
