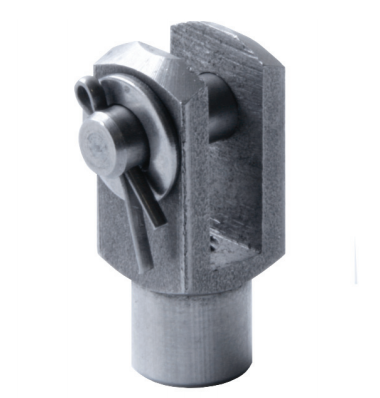

GM12SS-ASSY 12mm Bore Stainless Steel Clevis Joint (Right Hand)
Weight (Kg) :0.00
| GM12SS-ASSY 12mm Bore Stainless Steel Clevis Joint (Right Hand) Clevis: Stainless Steel 303L Clevis Pin: Stainless Steel 303L Washer: Stainless Steel 303L Split Pin: Stainless Steel 303L Specification: ELV &RoHS compliant Possible Applications |

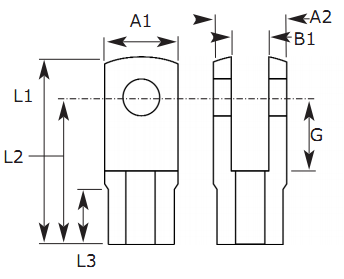

| Attribute | Value |
|---|---|
| Thread Length (L3) | 18 |
| Height/Length (L1) | 62 |
| Thread Direction | Right Hand |
| Thread Size | M12x1.75 |
| Bore Size | 12 |
| A1/A2 | 24 |
| G | 24 |
| B1 | 12 |
| L2 | 48 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
