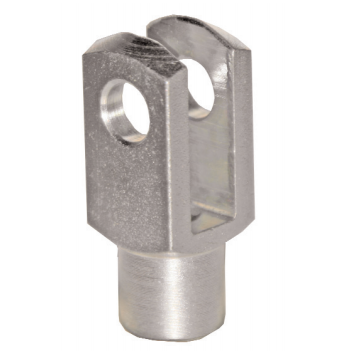

GM12LH 12mm Bore Steel Clevis Joint (Left Hand)
Weight (Kg) :0.00
| GM12LH 12mm Bore Steel Clevis Joint (Left Hand) Clevis: Steel 230M07PB Zinc plated white & blue passivate (silver/clear) Specification: ELV &RoHS compliant Possible Applications |

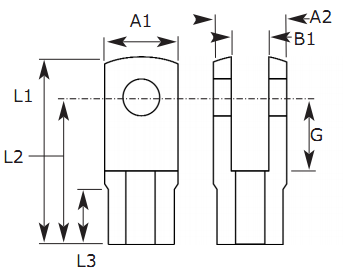

| Attribute | Value |
|---|---|
| Thread Length (L3) | 18 |
| Height/Length (L1) | 62 |
| Thread Direction | Left Hand |
| Thread Size | M12x1.75 |
| Bore Size | 12 |
| A1/A2 | 24 |
| G | 24 |
| B1 | 12 |
| L2 | 48 |
Lead time is 5-7 days
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
