GIL312 5/16inch Bore Steel Clevis Joint (Right Hand)

Weight (Kg) :0.00

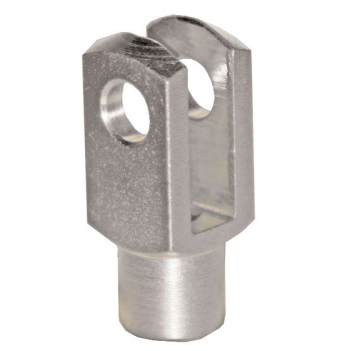

GIL312 5/16inch Bore Steel Clevis Joint (Right Hand)

Clevis: Steel 230M07PB Zinc plated white & blue passivate (silver/clear)

Specification: ELV &RoHS compliant

Possible Applications
  • Light to heavy industrial/mechanical applications
  • Construction equipment
  • Agricultural equipment
  • Industrial equipment

    • GIL312 5/16inch Bore Steel Clevis Joint (Right Hand)

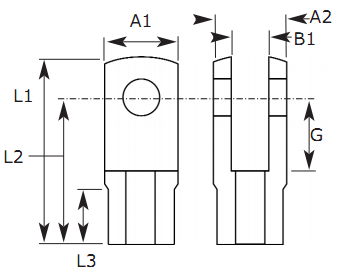

    Attribute Value
    A1/A2 0.630
    Thread Length (L3) 0.472
    Height/Length (L1) 2.283
    Thread Direction Right Hand
    Thread Size 5/16 UNF
    Bore Size 5/16
    G 1.260
    B1 0.3125
    L2 1.890
    Qty

    £3.95
    Lead time is 5-7 days

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
